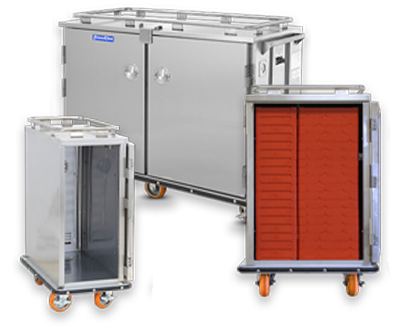

The Perfect Union: ServeSmart Correctional Meal Delivery System
ServeSmart is JonesZylon's integrated correctional meal delivery system — purpose-built for prisons and jails where durability, safety, and long-term value are non-negotiable. SmartTrays and SmartCarts are engineered to work together as a complete prison food service solution: self-locking 5-compartment meal trays precision-sized to maximize capacity inside corrections-grade stainless steel delivery carts. Compare ServeSmart with our other correctional meal delivery carts and systems.
SmartTrays for Correctional Meal Delivery

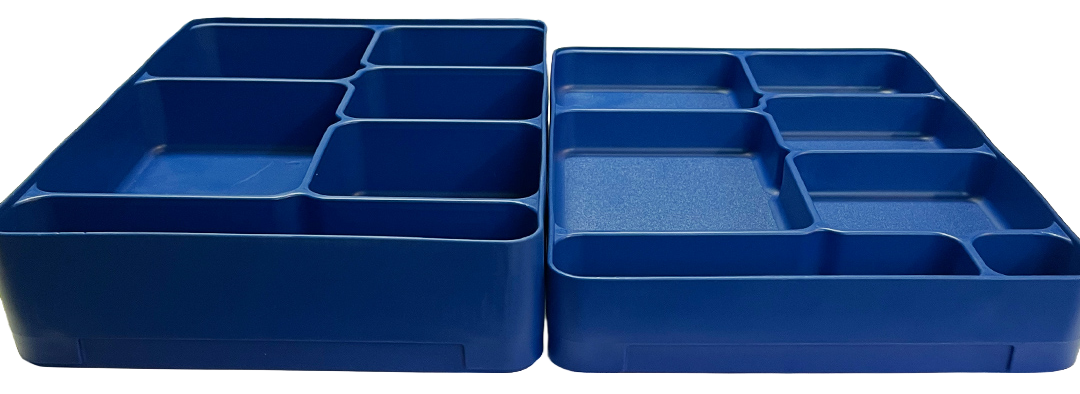

SmartTray XD (left) vs. SmartTray (right). The XD's deeper compartments accommodate approximately 60% more food by volume — useful for larger portions.
Solid molded, self-locking 5-compartment meal trays designed specifically for correctional food service — engineered to protect food, stack stably, and hold up to the demands of daily institutional use.
SmartTrays self-lock when stacked, with the bottom of each tray acting as the lid for the one below — eliminating the need for individual lids on every tray. Only the top of each stack requires a lid. SmartTray XD offers extra depth to prevent food contact between stacked trays while accommodating larger portions — the tradeoff is slightly fewer trays per cart, so facilities may need a larger cart or additional units. SmartTrays are also available as a standalone compartment tray for facilities that need correctional food trays without the full ServeSmart cart system.
- 5 compartments with sealed separation
- Self-lock — stack in any orientation and height
- Bottom of one tray acts as lid for the next
- Underside headspace keeps food off tray bottoms
- Condiment & flatware compartments
- Available in copolymer or MaxFlex blend
- MaxFlex option provides added safety — less weaponizable for higher-security environments
- Stock colors: Brick, Brown, Royal & Teal
- Lids only needed for top of stack
Spec Sheets:
SmartTray (left) vs. SmartTray XD (right). The XD offers approximately 60% more compartment depth — useful for larger portions.

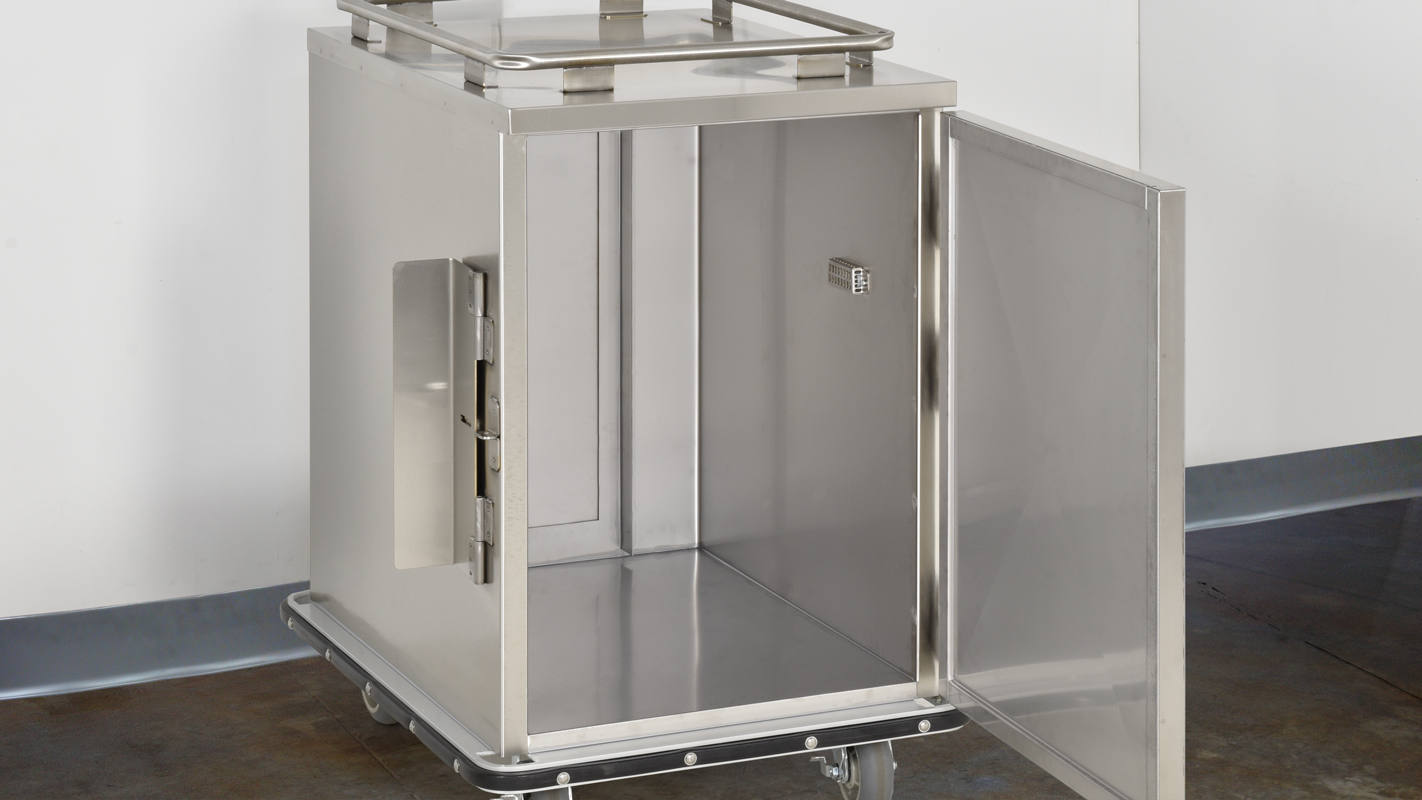

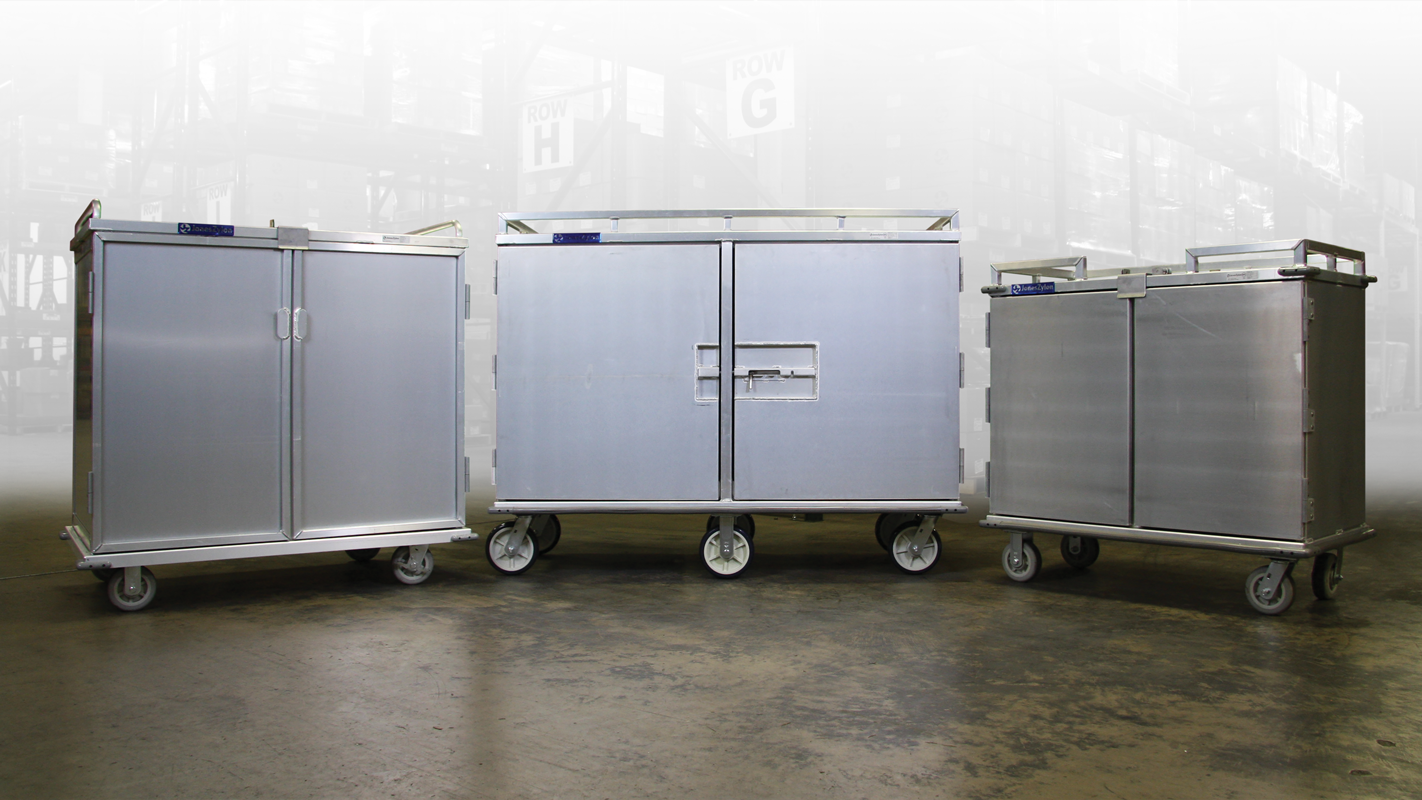

ServeSmart Prison & Jail Meal Delivery Carts
Designed to pair precisely with SmartTrays, ServeSmart SmartCarts are corrections-grade prison and jail meal delivery carts built for institutional environments where durability, capacity, and efficient tray service are critical. Available in heated or ambient configurations across seven sizes, the lineup ranges from narrow-width carts for tight doorways to high-capacity units for large correctional housing units.
- Heated or ambient configuration with swappable inserts
- Heavy-duty corrections-grade construction
- Durable stainless steel, easy to clean
- High-performance, upgradable casters
- Engineered fit with SmartTrays for maximum capacity
- UL and NSF certified
- 1-year parts and labor warranty

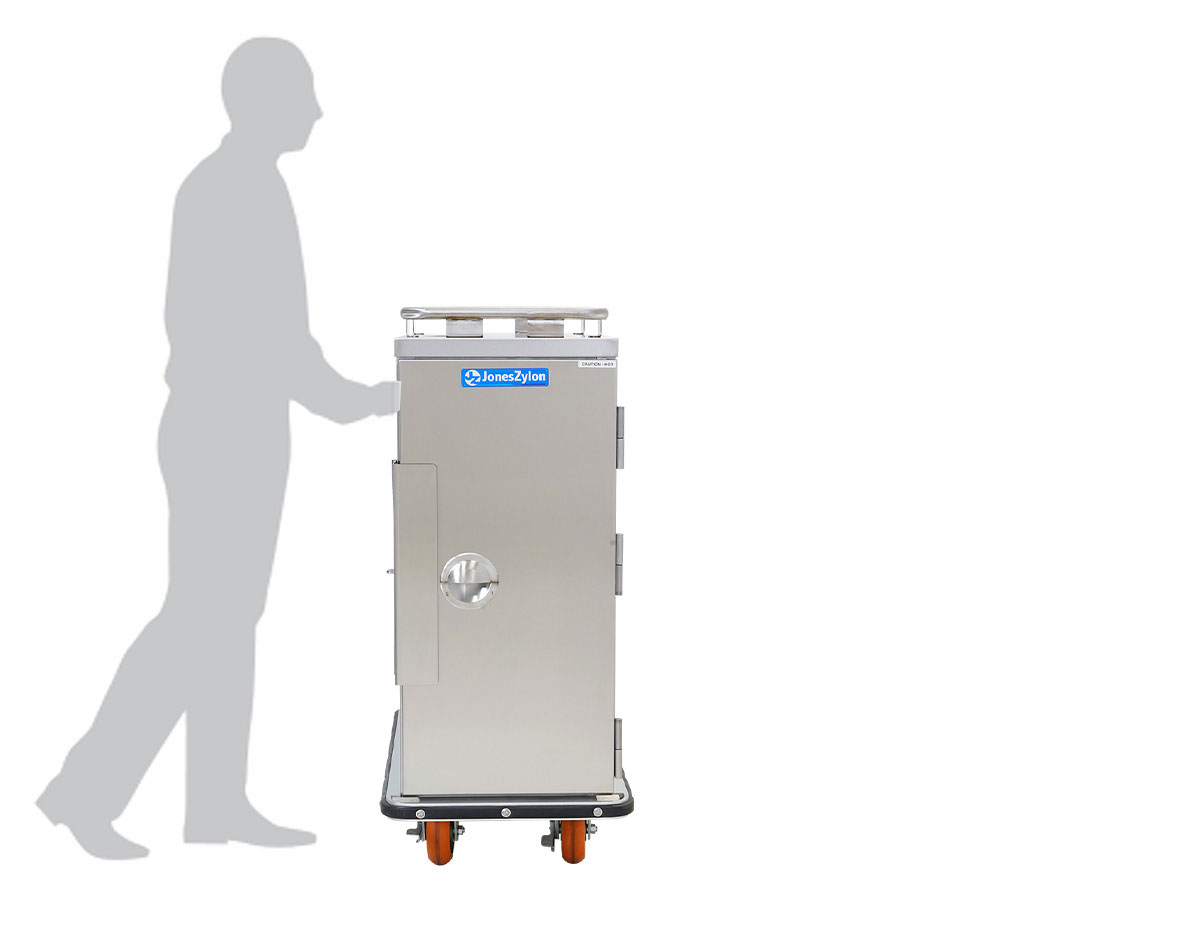

Features
- Fits 3 SmartTrays per layer and 18 high
- 21½" width fits most doorways
- Rear-mounted removable heating assembly
Dimensions
Height: 47.8" / Width: 21.5" / Depth: 38.25"
Electrical
JZA-54: No electrical system
JZH-54-RH: 120V / 1700W / 14.2AMP / NEMA 5-15

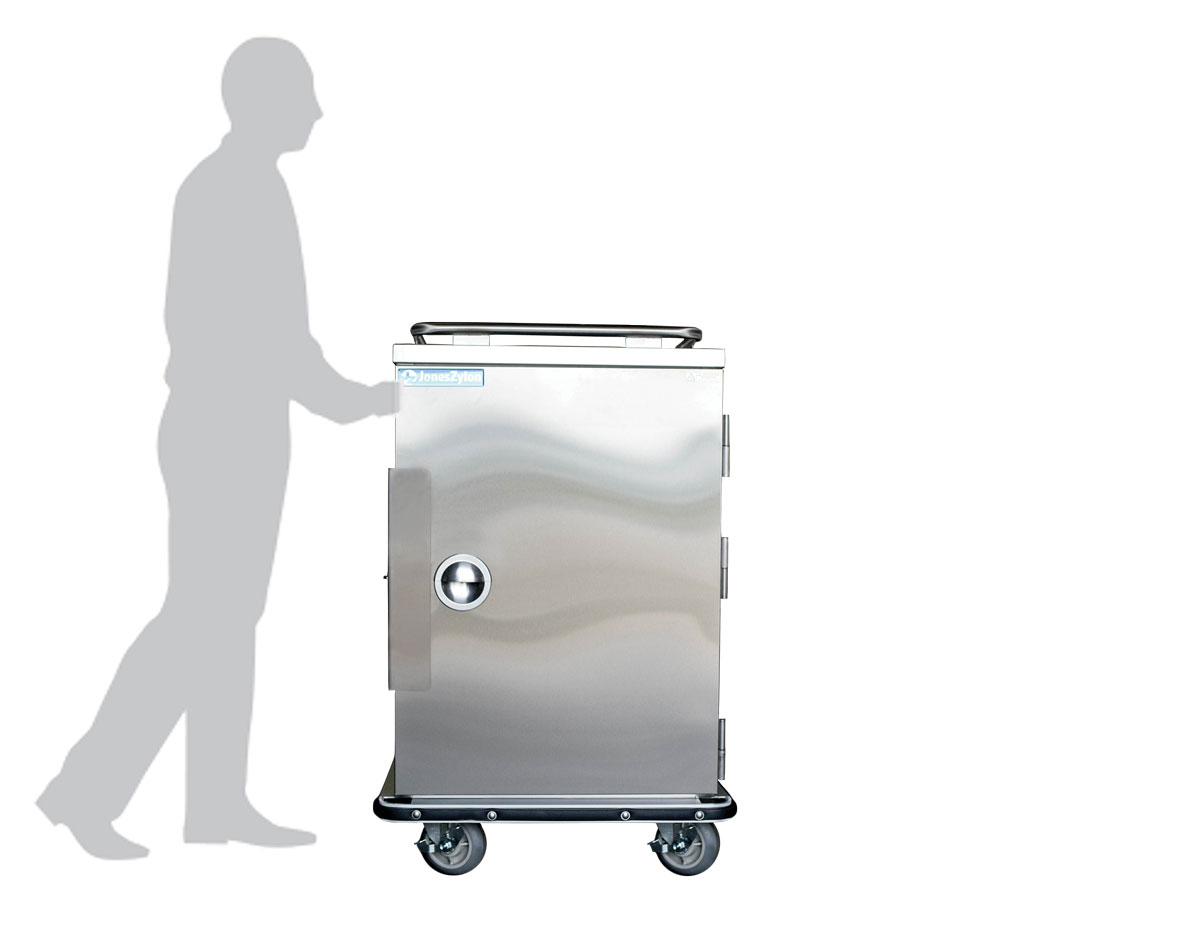

Features
- Fits 5 SmartTrays per layer and 18 high
- 30.75" width fits most doorways
- Rear-mounted removable heating assembly
Dimensions
Height: 47.3" / Width: 30.75" / Depth: 38.25"
Electrical
JZA-6UBT: No electrical system
JZH-6UBT-RH: 120V / 1700W / 14.2AMP / NEMA 5-15

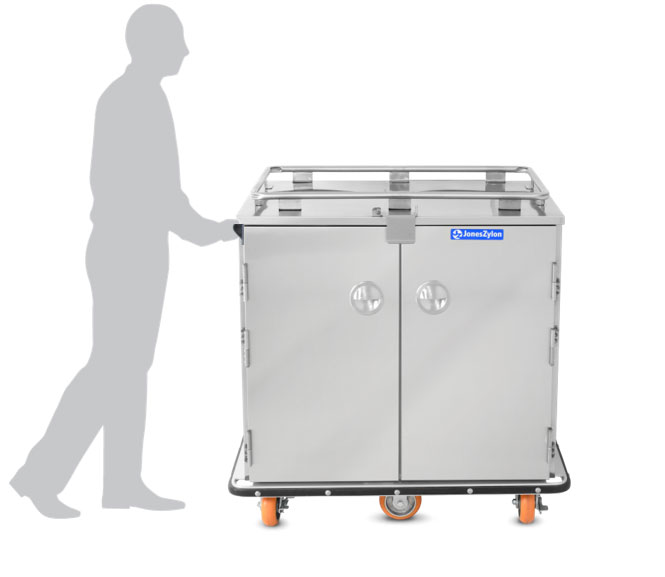

Features
- Fits 8 SmartTrays per layer and 17 high
- Center casters for axis-turning
- Rear-mounted removable heating assembly
Dimensions
Height: 47.5" / Width: 54.88" / Depth: 31"
Electrical
JZA-136: No electrical system
JZH-136-RH: 120V / 1700W / 14.2AMP / NEMA 5-15

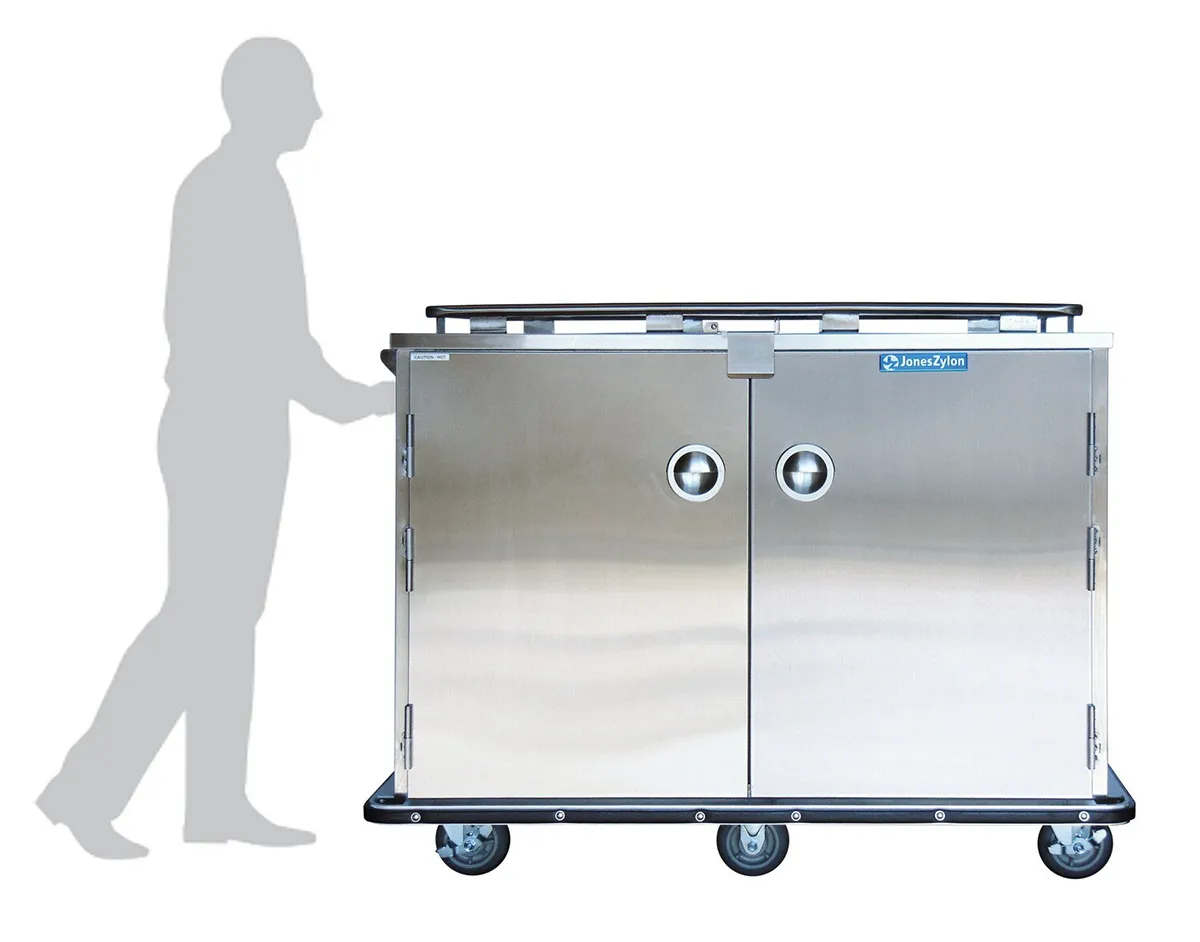

Features
- Fits 9 SmartTrays per layer and 18 high
- Center casters for maneuvering
- Side-mounted removable heating assembly
Dimensions
Height: 47.5" / Width: 62.9" / Depth: 31"
Electrical
JZA-168: No electrical system
JZH-168-RH: 120V / 1700W / 14.2AMP / NEMA 5-15

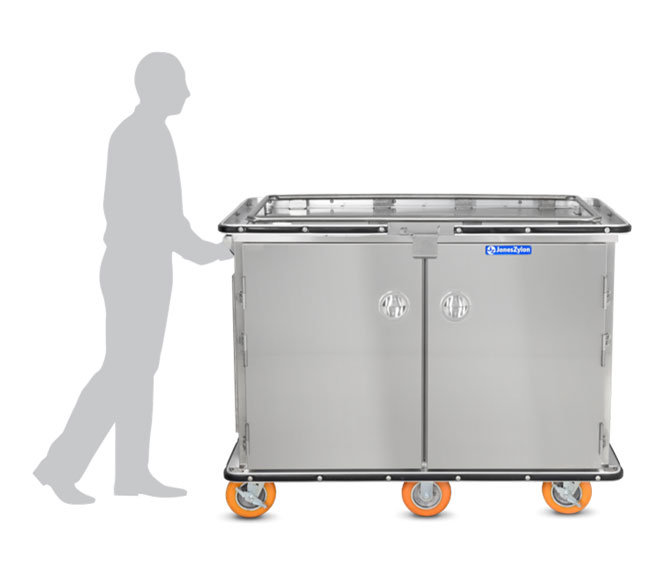

Features
- Fits 10 SmartTrays per layer and 17 high
- Center casters for axis turning
- Side-mounted removable heating assembly
Dimensions
Height: 47.5" / Width: 62.9" / Depth: 32.5"
Electrical
JZA-168XL: No electrical system
JZH-168XL-RH: 120V / 1700W / 14.2AMP / NEMA 5-15

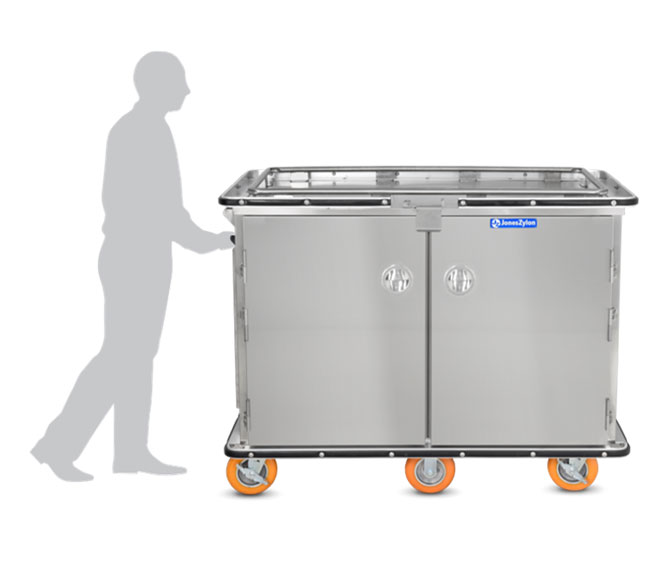

Features
- Fits 10 trays per layer and 19 high
- Center casters for axis turning
- Side-mounted removable heating assembly
Dimensions
Standard (JZA, JZH):
Height: 51" / Width: 62.9" / Depth: 32.5"
JZHR-192XL-RH:
Height: 66.25" / Width: 62.9" / Depth: 32.5"
Electrical
JZA-192XL: No electrical system
JZH-192XL-RH: 120V / 1700W / 14.2AMP / NEMA 5-15
JZHR-192XL-RH: 120V / 1800W / 15.0AMP / NEMA 5-20P
Capacity
190 SmartTrays
150 SmartTray XDs
JZA-192XL Spec Sheet JZH-192XL Spec Sheet JZHR-192XL Spec Sheet
Features
- Fits 10 trays per layer and 19 high
- Center casters for axis turning
- Side-mounted removable heating assembly
Dimensions
Standard (JZA, JZH & JZHA):
Height: 53.75" / Width: 62.9" / Depth: 32.5"
Refrigerated:
Height: 68.25" / Width: 62.9" / Depth: 33.5"
Electrical
JZA-204: No electrical system
JZH-204-RH: 120V / 1700W / 14.2AMP / NEMA 5-15
JZHR-204-HR: 120V / 1800W / 15AMP / NEMA 5-20
Capacity
200 SmartTrays
150 SmartTray XDs
JZA-204 Spec Sheet JZH-204-RH Spec Sheet JZHR-204-RH Spec SheetNeed a different cart configuration or already have a tray program? View our full range of correctional meal delivery carts.
SmartTrays vs. Insulated Trays: The Long-Term Cost Difference
Tray Replacement Costs
One of the most compelling reasons correctional facilities switch to the ServeSmart system is total cost of ownership. Insulated trays typically see a replacement rate of around 50% per year — a significant ongoing expense at any volume. SmartTrays, by contrast, are built for institutional durability with a conservative replacement rate of approximately 10% annually, and in practice many facilities see even lower. That difference compounds quickly across a large fleet.
Eliminating the Insulated Cart
The ServeSmart system also eliminates the need for an insulated cart altogether. Rather than buying both a heated or ambient cart and a set of insulated trays, facilities get a single integrated system where the cart and tray work together to maintain temperature and protect food during transport. Fewer carts are needed because SmartTrays stack more efficiently than bulky insulated trays, meaning you can move more meals per run.
The 3–5 Year View
For facilities evaluating both approaches, the numbers tend to favor ServeSmart significantly over a 3–5 year horizon. Use our cost savings calculator to run the numbers for your facility — or explore our full line of compartment trays for corrections if you're evaluating tray-only programs alongside the full ServeSmart system.
See ServeSmart in Action
A complete walkthrough of the ServeSmart system — SmartTray design, cart configurations, temperature performance, and long-term value. Worth watching if you're evaluating a switch from an insulated tray program.
Request a Quote on the ServeSmart System
Tell us your facility size, housing unit configuration, and current tray program and we'll help you find the right SmartTray and SmartCart combination — and put together a quote that shows the long-term value of switching to ServeSmart.
