Heated Meal Delivery Carts Mission-Ready for
Demanding Environments

JonesZylon's Mission Ready heated meal delivery carts are built for the demands of correctional food service — where downtime isn't an option and durability is non-negotiable. Featuring removable and interchangeable self-contained heating units, these carts deliver 100% uptime, straightforward sanitation, and long-term reliability in the toughest institutional environments. Compare Mission Ready with our full range of correctional meal delivery carts and systems .

  • Snap-in heater design – easily removable for cleaning
  • Swap in a backup heater at any time — zero downtime
  • Corrections-grade construction built for daily institutional use
  • Fits a variety of tray types and configurations
  • Ideal for both segregation and insulated meal tray programs
Download Brochure Explore Options Contact Us

Interchangeable Heating Units

All Mission Ready carts are equipped with a snap-in heating system that can be removed for cleaning or swapped with a backup heater to eliminate downtime — a critical advantage in high-volume correctional food service environments.

Carts can also convert to insulated ambient configuration by replacing the heater with an insulated back panel, giving facilities flexibility across different meal delivery programs.

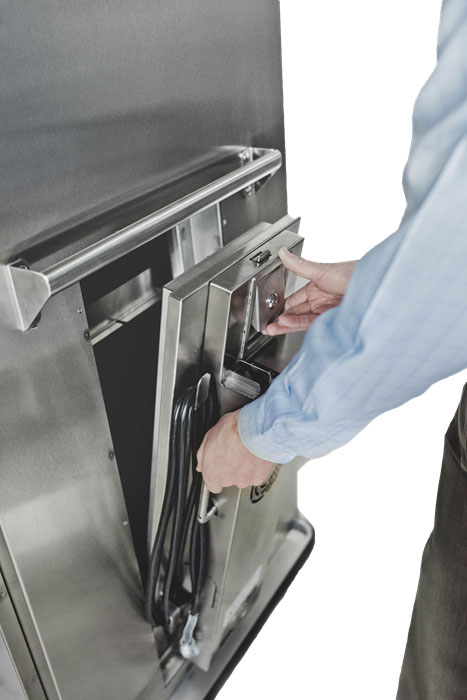

Mission Ready snap-in heater removal step 1

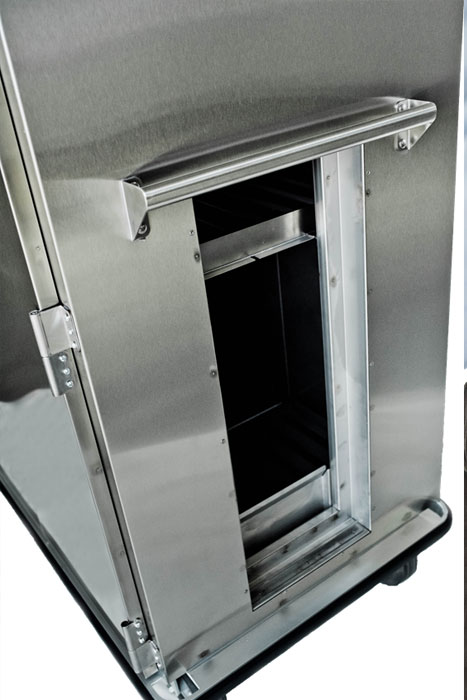

Mission Ready snap-in heater removal step 2
Mission Ready snap-in heater removal step 3

Mission Ready Heated Meal Delivery Cart Models & Specs

Perfect for tight spaces like old doorways and elevators. Great capacity in a small footprint.

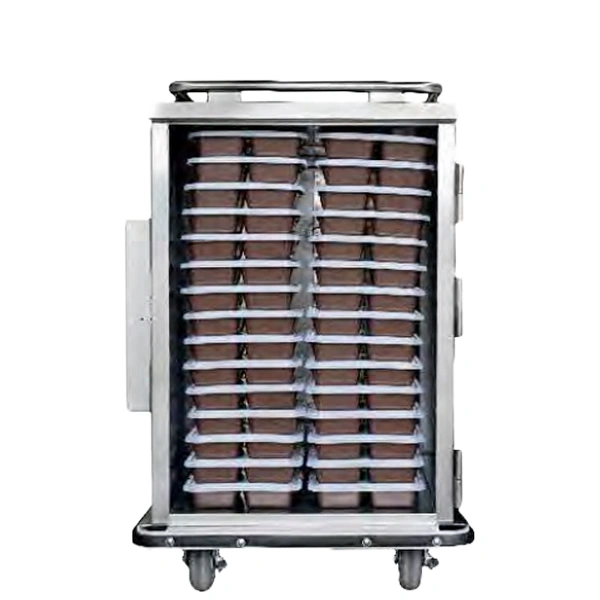

JZH-6UBT-RH Compact Heated Cart for Corrections
Features
  • 6" multi-terrain casters
  • Width: 30.75" – fits most doorways
  • Optional racks for bulk food pans (up to 14)
  • Solar digital thermometer
  • Easy to push and maneuver
Dimensions

Height: 47.3" / Width: 30.75" / Depth: 38.25"

Electrical

JZA-6UBT: No electrical system

JZH-6UBT-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

Tray Capacity

9000 Series: 90
5000 Series: 150
4000 Series: 160
SmartTray: 90
SmartTray XD: 65

JZA-6UBT Spec Sheet JZH-6UBT-RH Spec Sheet

Standard-sized heated cabinet ideal for holding bulk food in sheet pans or steam pans.

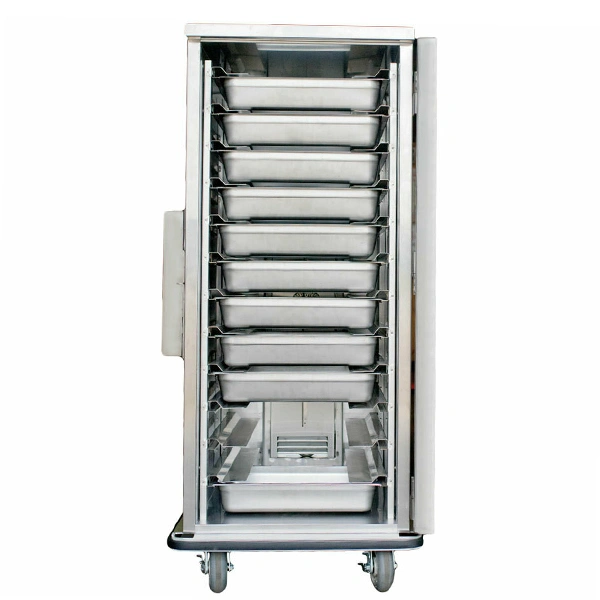

JZH-12UBT-RH Heated Holding Cabinet for Corrections
Features
  • 6" multi-terrain casters
  • Slide spacing: 4.5"
Dimensions

Height: 67.5" / Width: 30.5" / Depth: 38"

Electrical

120V / 1700W / 14.2AMP / NEMA 5-15P

Capacity

12 – 18x26 sheet pans
24 – 4" 12x20 steam pans

JZH-12UBT-RH Spec Sheet

Small size dual temp cart delivering up to 84 heated trays and ambient trays.

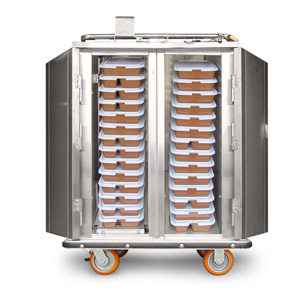

JZHA-84-RH Small Dual Temp Heated Cart
Features
  • 6" multi-terrain casters (2 swivel with brake, 2 rigid)
  • Bottom baffle heat distribution
  • Side mount snap-in removable heater
  • Solar digital thermometer
Dimensions

Height: 47.5" / Width: 36.63" / Depth: 32.5"

Electrical

120V / 1700W / 14.2AMP / NEMA 5-15P

Tray Capacity

9000 Series: 84
5000 Series: 112
4000 Series: 112

JZHA-84-RH Spec Sheet

Small dual temp cart delivering 112 heated and ambient trays.

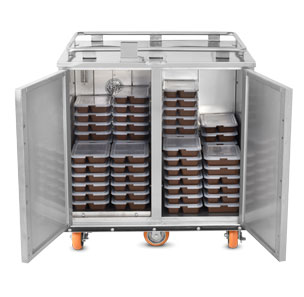

JZHA-112-RH Small Dual Temp Heated Cart
Features
  • Rear mount snap-in removable heater
  • Bottom baffle heat distribution
  • 6" multi-terrain casters
  • Solar digital thermometer
Dimensions

Height: 47.49" / Width: 47.5" / Depth: 31.75"

Electrical

120V / 1700W / 14.2AMP / NEMA 5-15P

Tray Capacity

9000 Series: 112
5000 Series: 192
4000 Series: 192

JZHA-112-RH Spec Sheet

Built for larger housing units. Narrower footprint saves floor space.

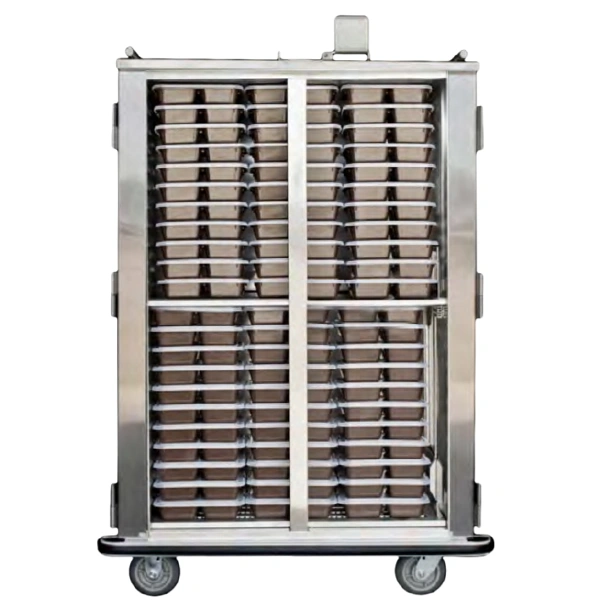

JZH-198 Large Capacity Heated Cart for Corrections
Features
  • S/S mid-shelf (optional shelves available)
  • Bottom baffle for even heat distribution
  • Solar digital thermometer
Dimensions

Height: 64.5" / Width: 46" / Depth: 31.75"

Electrical

JZA-198: No electrical system

JZH-198-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

Tray Capacity

9000 Series: 198
5000 Series: 260
4000 Series: 360
SmartTray: 168
SmartTray XD: 102

JZA-198 Spec Sheet JZH-198 Spec Sheet

Large dual temp cart with 10 stainless steel shelves. Maneuverable enough to turn on its own axis.

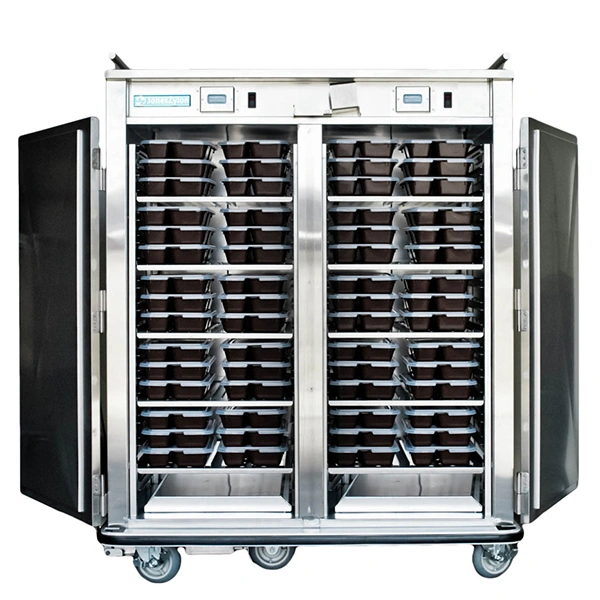

JZ-120-RH Large Dual Temp Heated Cart
Features
  • 10 S/S shelves on removable racks
  • Side-mount recessed push handles
  • Available as Heated or Ambient
Dimensions

Standard (JZAA, JZH, JZHA):

Height: 60.25" / Width: 57.63" / Depth: 29"

JZHR-120-RH:

Height: 75" / Width: 57.63" / Depth: 29"

Electrical

JZAA-120: No electrical system

JZH-120-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

JZHA-120-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

JZHR-120-RH: 120V / 1800W / 15.0AMP / NEMA 5-20P

Tray Capacity

9000 Series: 120 (shelves), 168 (no shelves)
5000 Series: 180 (shelves), 252 (no shelves)
4000 Series: 180 (shelves), 252 (no shelves)

JZAA-120 Spec Sheet JZH-120-RH Spec Sheet JZHA-120-RH Spec Sheet JZHR-120-RH Spec Sheet

Delivering up to 132 meals with hot and ambient trays. Can transport bulk food in hotel or sheet pans.

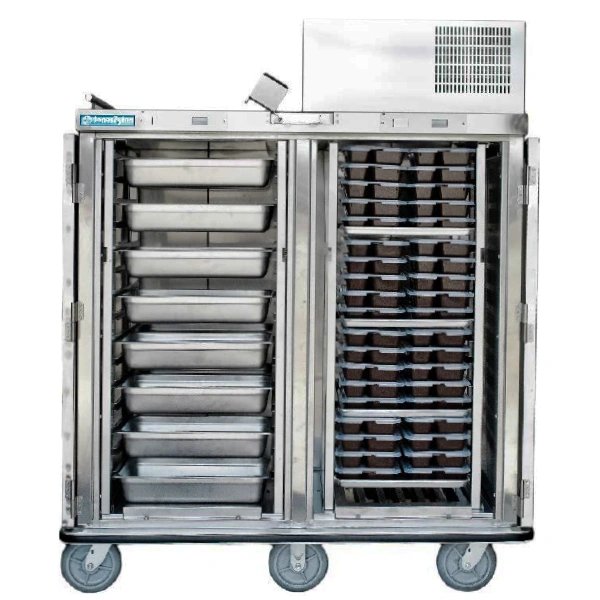

JZ-144-RH Extra Large Dual Temp Heated Cart
Features
  • 8" multi-terrain casters
  • Removable racks at 4.5" spacing
  • Heavy Duty package option available
Dimensions

Standard (JZA, JZHH, JZHA):

Height: 66.00" / Width: 62.5" / Depth: 31.75"

JZHR-144-RH:

Height: 76" / Width: 62.5" / Depth: 31.5"

Electrical

JZAA-144: No electrical system

JZHH-144-2RH: 120V / 2400W / 20AMP / NEMA 5-20P

JZHA-144-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

JZHR-144-RH: 120V / 1800W / 15.0AMP / NEMA 5-20P

Tray Capacity

9000 Series: 144 (shelves), 264 (no shelves)
5000 Series: 192 (shelves), 360 (no shelves)
4000 Series: 192 (shelves), 378 (no shelves)

JZAA-144 Spec Sheet JZHH-144-2RH Spec Sheet JZHA-144-RH Spec Sheet JZHR-144-RH Spec Sheet

High capacity while staying easy to maneuver and push. Turns on its own axis.

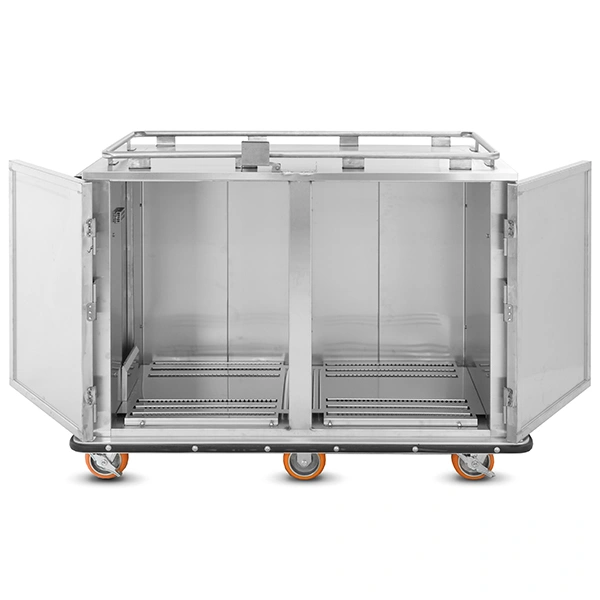

JZH-168 Mid-Size High-Capacity Heated Cart
Features
  • Fits up to 28 4" pans (optional)
  • Solar digital thermometer
  • Excellent visibility and maneuverability
Dimensions

Height: 47.5" / Width: 62.875" / Depth: 32.5"

Electrical

JZA-168: No electrical system

JZH-168-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

Tray Capacity

9000 Series: 168
5000 Series: 266
4000 Series: 336
SmartTray: 162
SmartTray XD: 130

JZA-168 Spec Sheet JZH-168 Spec Sheet

Large dual temp cart delivering up to 168 meals with hot and ambient trays.

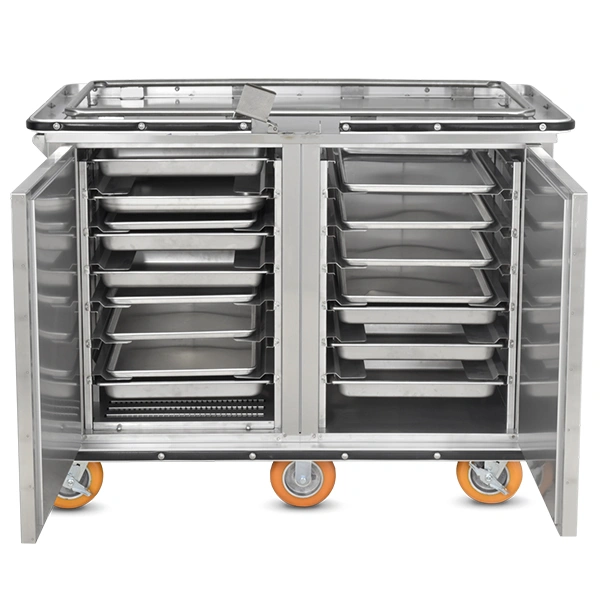

JZ-168 Large Dual Temp Heated Cart
Features
  • 6" multi-terrain casters
  • Side-mount recessed push handles
  • Available as All-Heated or Dual-Temp
Dimensions

Height: 47" / Width: 61" / Depth: 31"

Electrical

JZA-168: No electrical system

JZH-168-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

Tray Capacity

9000 Series: 168
5000 Series: 266
4000 Series: 336
SmartTray: 162
SmartTray XD: 130

JZA-168 Spec Sheet JZH-168 Spec Sheet

Extended dual temp cart for high-capacity hot meal delivery in correctional facilities.

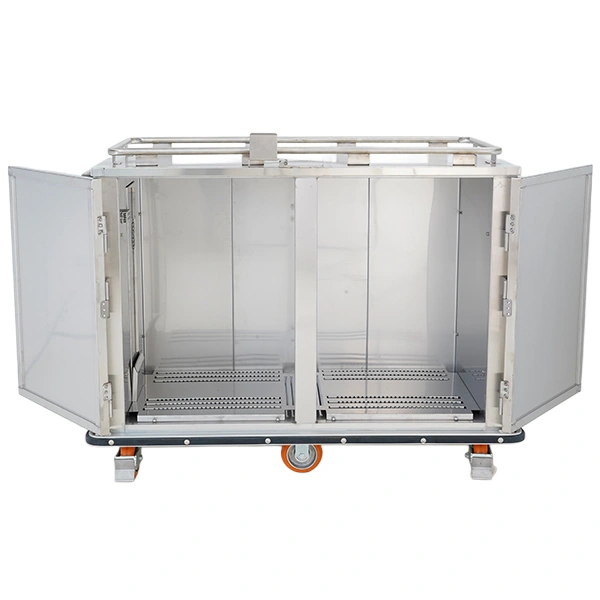

JZ-168 XL Extended Dual Temp Heated Cart
Features
  • Bolt reinforced bottom bumper
  • Can carry up to 14 sheet pans (18x26)
  • Solar digital thermometer
Dimensions

Standard (JZA, JZH, JZHA):

Height: 47.50" / Width: 62.9" / Depth: 32.5"

JZHR-168XL-RH:

Height: 62.25" / Width: 62.9" / Depth: 32.5"

Electrical

JZA-168XL: No electrical system

JZH-168XL-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

JZHA-168XL-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

JZHR-168XL-RH: 120V / 1800W / 15.0AMP / NEMA 5-20P

Tray Capacity

9000 Series: 168
5000 Series: 294
4000 Series: 368
SmartTray: 170
SmartTray XD: 130

JZA-168XL Spec Sheet JZH-168XL-RH Spec Sheet JZHA-168XL Spec Sheet JZHR-168XL Spec Sheet

Delivering up to 192 meals with hot and ambient trays. High-capacity correctional food service cart.

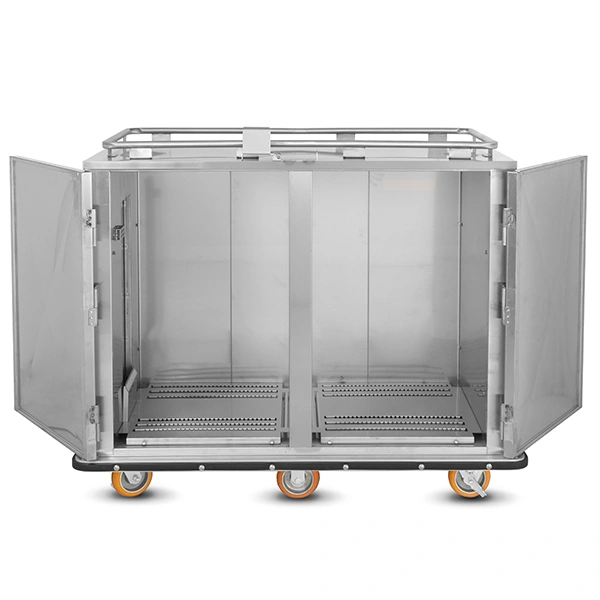

JZ-192 XL Large Dual Temp Heated Cart
Features
  • Can carry 32 bulk food pans (4")
  • Top rail for transport
  • Excellent maneuverability
Dimensions

Standard (JZA, JZH, JZHA):

Height: 51" / Width: 62.9" / Depth: 32.5"

JZHR-192XL-RH:

Height: 66.25" / Width: 62.9" / Depth: 32.5"

Electrical

JZA-192XL: No electrical system

JZH-192XL-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

JZHA-192XL-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

JZHR-192XL-RH: 120V / 1800W / 15.0AMP / NEMA 5-20P

Tray Capacity

9000 Series: 192
5000 Series: 336
4000 Series: 414
SmartTray: 190
SmartTray XD: 150
Bulk Food Pans (12x20x4): 32
Sheet Pans (18x26): 16

JZA-192XL Spec Sheet JZH-192XL-RH Spec Sheet JZHA-192XL-RH Spec Sheet JZHR-192XL-RH Spec Sheet

Engineered for the toughest correctional environments with reinforced components throughout.

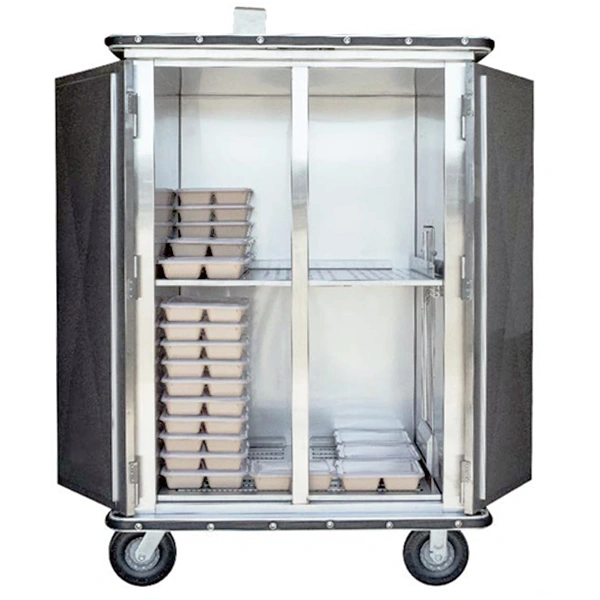

JZH-198HD Extreme Duty Heated Cart for Corrections
Features
  • 8" premium casters
  • Reinforced bumpers, hinges, and latch
  • Recessed security handle
Dimensions

Height: 66.50" / Width: 46" / Depth: 32.75"

Electrical

JZA-198HD: No electrical system

JZH-198HD-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

JZHA-198HD-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

Tray Capacity

9000 Series: 198
5000 Series: 260
4000 Series: 360
SmartTray: 168
SmartTray XD: 108

JZA-198HD Spec Sheet JZH-198HD-RH Spec Sheet JZHA-198HD Spec Sheet

Which Mission Ready Heated Cart Is Right for Your Facility?

Choosing the right heated meal delivery cart depends on your housing unit size, tray program, and how your facility handles sanitation and maintenance. Compact models like the JZH-6UBT-RH are ideal for tight corridors and older facilities with narrow doorways. Mid-size carts like the JZH-168 offer high capacity without sacrificing maneuverability. For the most demanding environments, the JZH-198HD is built with reinforced bumpers, hinges, and a recessed security handle specifically for corrections. All Mission Ready carts share the same snap-in heater system — meaning one spare heater can serve your entire fleet and downtime is eliminated. If you're comparing heated carts with other correctional meal delivery carts and systems, or evaluating your tray program alongside a full ServeSmart system, we can help you compare the options. Fill out the form below and we'll help you match the right cart to your operation.

Request a Quote on Mission Ready Heated Meal Carts

Tell us your facility size, tray program, and housing unit configuration and we'll recommend the right Mission Ready cart and get you pricing.

Step 1 of 3
What type of facility are you with?
Select the option that best describes your facility.
Federal BOP
State DOC
Jail / Metro
Private Corrections
Corrections Distributor
Other
Step 2 of 3
How can we help?
Choose the option that fits what you're looking for.
Request a Quote
Request Dinnerware Samples
Contact Sales Team
Book a Free Consultation
Step 3 of 3
Tell us about yourself
 ·
Something went wrong. Please try again or email us at solutions@joneszylon.com.
Step 3 of 4
Which samples are you interested in?
Select one to continue. Each kit includes a tumbler, mug, utensil set, segmented tray, and SmartTray.
MaxFlex Flexible Safety Dinnerware
MaxFlex Flexible Safety Dinnerware
Flexes rather than breaks. Can't be sharpened or fractured into a weapon.
Copolymer Dinnerware
Copolymer Dinnerware
Durable, dishwasher-safe reusable dinnerware.
Both dinnerware lines
Send Me Both
Sample both lines side by side.
Special request? Use the message field on the next page to request specific items.
Step 4 of 4
Where should we ship your samples?
 ·  samples
We'll ship your samples to the address below at no charge.
Something went wrong. Please try again or email us at solutions@joneszylon.com.
Step 3 of 3
Tell us a little about yourself
We'll come prepared to actually help.
 ·  Free Consultation
Your info is saved — go ahead and pick your time.
Book Your Time
Thank you for reaching out.

Mission Ready Carts — Frequently Asked Questions

A removable heater cart uses a self-contained heating unit that snaps in and out of the cart body without the need of any tools. JonesZylon's Mission Ready line features this design, making it easy to remove the heater for thorough cleaning or swap it with a backup to eliminate downtime. The heater can also be replaced with an insulated insert when heat isn't needed.

With Mission Ready carts, the heating unit is removable and interchangeable. If a heater fails, staff can snap in a backup and keep serving while the original is repaired. The heaters use non-proprietary parts, so your maintenance team can fix them in-house. We also offer Uptime Maintenance Kits that include the most commonly replaced parts so you always have backups on hand.

Yes. Mission Ready spare heaters are interchangeable across the entire Mission Ready cart line. A single backup heater can serve your entire fleet, regardless of which model goes down — so facilities don't need to stock separate spares for each cart size.

Yes. Mission Ready carts can convert from heated to insulated ambient by replacing the snap-in heater with an insulated back panel. This gives facilities the flexibility to run heated or ambient service from the same cart depending on the meal or route, without purchasing separate equipment. The reverse is also true — ambient carts can be upgraded to heated by swapping in snap-in heaters, eliminating the need to buy new carts.

Yes. Mission Ready carts are manufactured in the USA and are built to corrections-grade standards with heavy-duty stainless steel construction, multi-terrain casters, and reinforced components designed for demanding institutional environments.
