Corrections-Grade
Food Service Equipment
JonesZylon manufactures the full spectrum of correctional food service carts — from compact meal delivery units that fit narrow doorways to high-capacity bulk food cabinets for large housing units. Every cart is built for the demands of daily institutional use: reinforced construction, removable heating assemblies, and configurations spanning ambient, heated, dual-temp, and refrigerated.
Correctional Meal Delivery Carts Built for Daily Institutional Use
JonesZylon manufactures insulated meal delivery carts, heated meal delivery carts, refrigerated food transport carts, and bulk food carts designed specifically for correctional facilities, prisons, and jails. From compact carts that fit narrow housing unit doorways to high-capacity bulk food transport systems, every cart is engineered for durability, maneuverability, and operational simplicity.
Facilities looking for a complete tray delivery system can explore the ServeSmart correctional meal delivery system — designed to maximize tray capacity, improve maneuverability, and streamline correctional meal service workflows.
For facilities prioritizing uptime and simplified maintenance, the Mission Ready correctional food cart platform features removable heating assemblies that allow carts to remain operational while service or maintenance is performed.
Meal Delivery Carts
Correctional-grade meal delivery carts available in heated, ambient, dual-temp, and refrigerated configurations across a full range of capacities. All models feature removable heating assemblies and are engineered for secure institutional environments.
Features
- Available configurations: Ambient & Heated
- Fits 3 SmartTrays per layer and 18 high
- 21½" width fits most doorways
- Rear-mounted removable heating assembly (optional)
Dimensions
Height: 47.8" / Width: 21.5" / Depth: 38.25"
Electrical
JZA-54: No electrical system
JZH-54-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P
Capacity
9000 Series: 45
5000 Series: 75
4000 Series: 90
SmartTray: 54
SmartTray XDs: 39
Spec Sheets

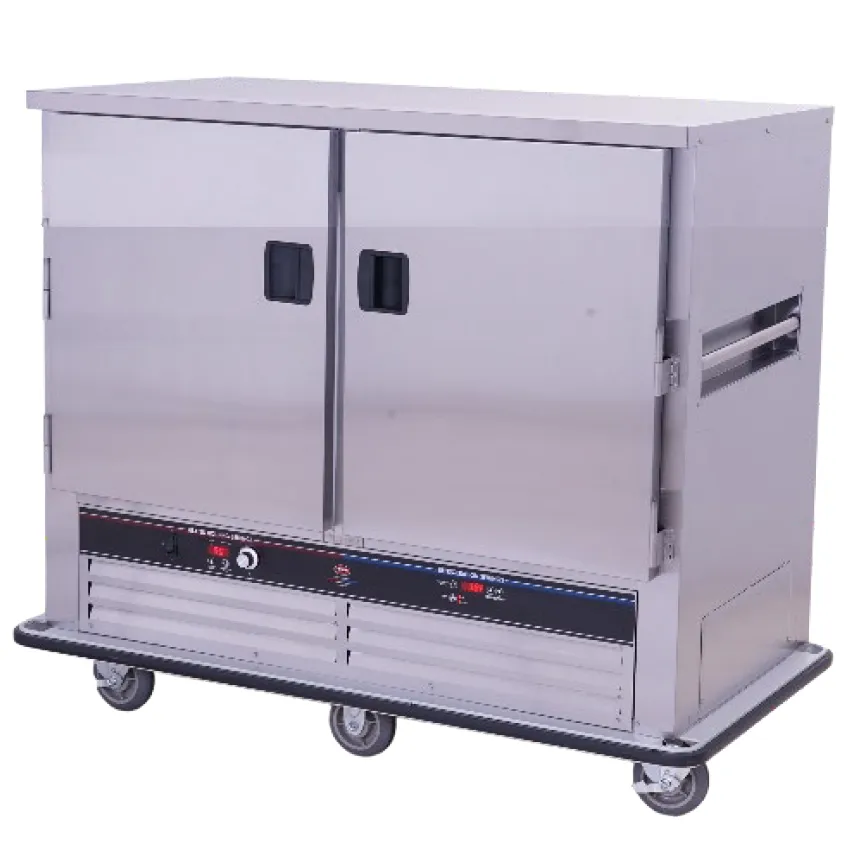

Features
- Available configurations: Heated/Refrigerated
- Refrigerated right side and heated left side
- Fully insulated in top, bottom, and sides
- Dual-temp recessed electronic controls with digital displays
Dimensions
Height: 50.5" / Width: 69.9" / Depth: 32.5"
Electrical
JZHR-4UBT: 120V / 1800W / 15AMP / NEMA 5-20P
Capacity
9000 Series: 48 (hot) / 48 (cold)
5000 Series: 72 (hot) / 72 (cold)
4000 Series: 81 (hot) / 81 (cold)
18" x 26" Sheet Pans: 4 (hot) / 4 (cold)
12" x 20" x 4" Hotel Pans: 8 (hot) / 8 (cold)
Spec Sheets
Features
- Available configurations: Ambient, Heated & Refrigerated
- Fits 5 SmartTrays per layer and 18 high
- 30.75" width fits most doorways
- Rear-mounted removable heating assembly (optional)
Dimensions
Height: 47.3" / Width: 30.75" / Depth: 38.25"
Electrical
JZA-6UBT: No electrical system
JZH-6UBT-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P
Capacity
9000 Series: 90
5000 Series: 150
4000 Series: 160
SmartTray: 90
SmartTray XDs: 60
Spec Sheets

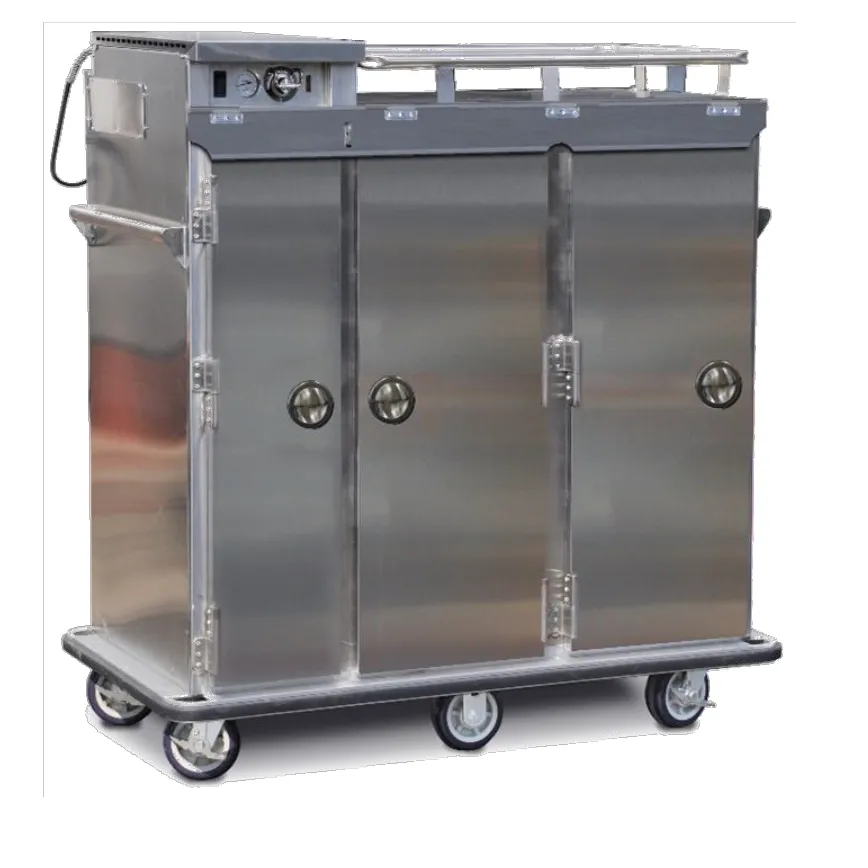

Features
- Available configurations: Heated/Ambient
- Top-mount forced air heater
- Fully insulated top, bottom and sides
- Six 6" premium casters
Dimensions
Height: 65.8" / Width: 54" / Depth: 30"
Electrical
JZHA-60: 120V / 1500W / 14.2AMP / NEMA 5-15P
Capacity
9000 Series: 60
PPST-1570 Base Tray: 60
Spec Sheets

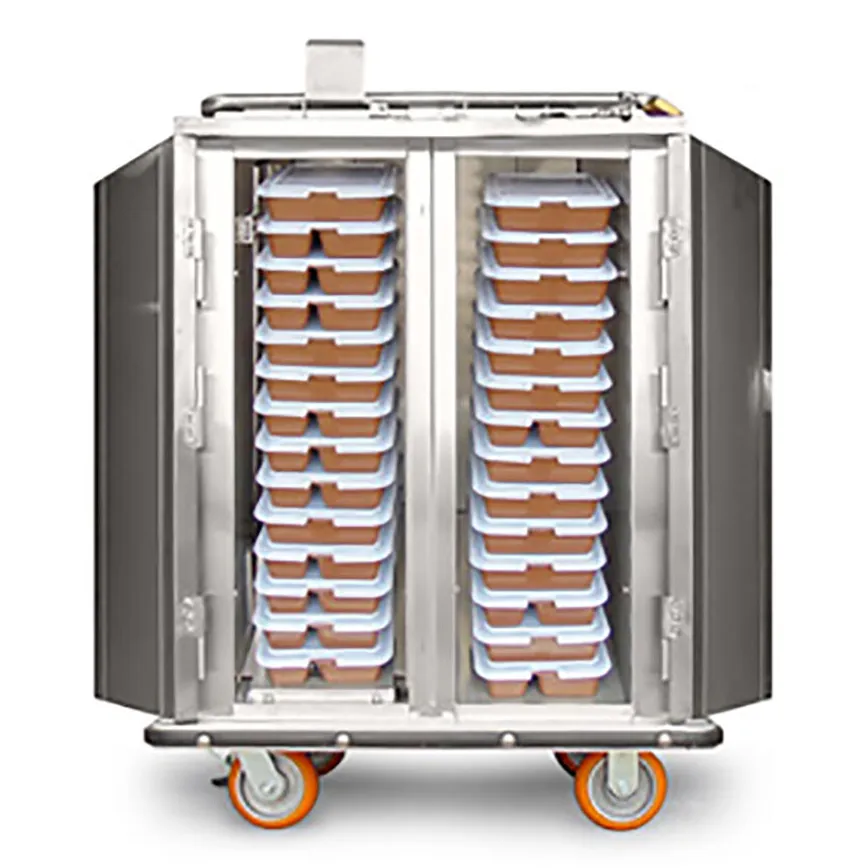

Features
- Available configurations: Heated/Ambient
- Solar-powered digital thermometer
- Fully insulated top, bottom and sides
- Six 6" premium casters
Dimensions
Height: 47.5" / Width: 37.63" / Depth: 32.5"
Electrical
JZHA-84-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P
Capacity
9000 Series: 84
5000 Series: 112
4000 Series: 112
Spec Sheets
Features
- Available configurations: Heated/Ambient
- Solar-powered digital thermometer
- Fully insulated top, bottom and sides
- Six 6" premium casters
Dimensions
Height: 47.5" / Width: 47.5" / Depth: 31.75"
Electrical
JZHA-112-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P
Capacity
9000 Series: 56 (hot) / 56 (cold)
5000 Series: 96 (hot) / 96 (cold)
4000 Series: 96 (hot) / 96 (cold)
Spec Sheets
Features
- Available configurations: Ambient, Heated, Refrigerated, Heated/Ambient & Heated/Refrigerated
- 10 S/S shelves on removable racks
- Side-mount recessed push handles
- Available as Heated, Ambient, or Dual Temp
Dimensions
Standard (JZAA, JZH, JZHA):
Height: 60.25" / Width: 57.63" / Depth: 29"
Refrigerated (JZHR-120-RH, JZHR-120 & JZRR):
Height: 75" / Width: 57.63" / Depth: 29"
Electrical
JZAA-120: No electrical system
JZH-120-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P
JZRR-120: 120V / 800W / 6.7AMP / NEMA 5-20P
JZHA-120-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P
JZHA-120: 120V / 960W / 8AMP / NEMA 5-15P
JZHR-120-RH: 120V / 1800W / 15.0AMP / NEMA 5-20P
JZHR-120: 120V / 1680W / 14AMP / NEMA 5-20P
Capacity
9000 Series: 120 (shelves), 168 (no shelves)
5000 Series: 180 (shelves), 252 (no shelves)
4000 Series: 180 (shelves), 252 (no shelves)
Capacities based on ambient configuration. Other configurations may differ — check spec sheets for details.
Spec Sheets
Features
- Available configurations: Ambient & Heated
- Fits 8 SmartTrays per layer and 17 high
- Center casters for axis-turning
- Rear-mounted removable heating assembly (optional)
Dimensions
Height: 47.5" / Width: 54.88" / Depth: 31"
Electrical
JZA-136: No electrical system
JZH-136-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P
Capacity
9000 Series: 140
5000 Series: 224
4000 Series: 288
SmartTray: 136
SmartTray XDs: 96
Spec Sheets

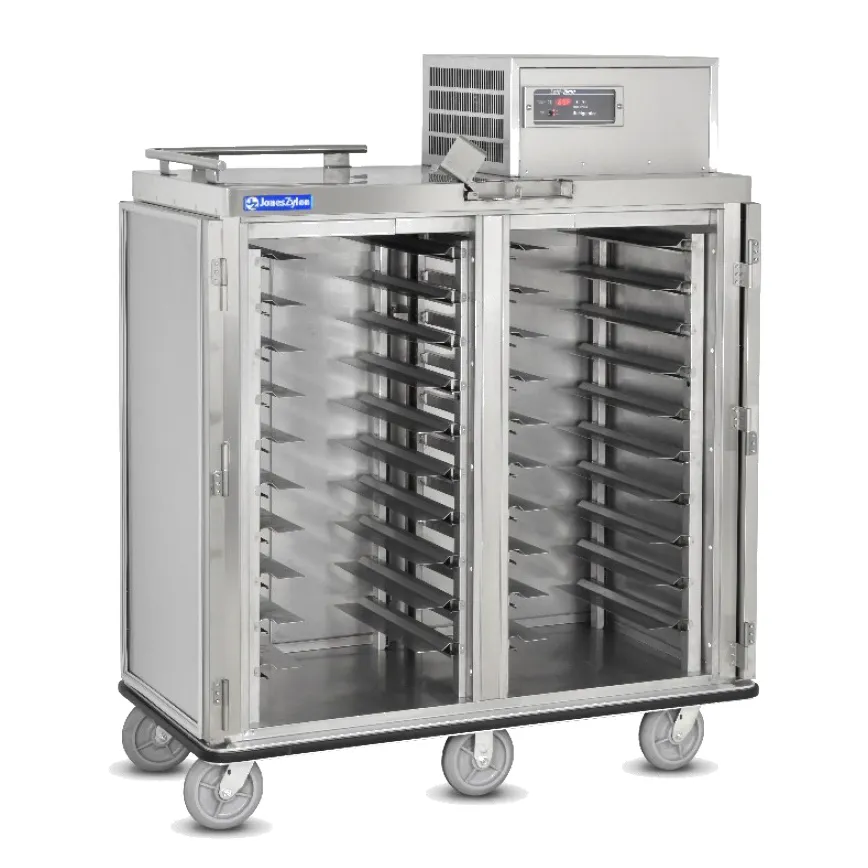

Features
- Available configurations: Ambient, Heated, Refrigerated, Heated/Ambient & Heated/Refrigerated
- 8" multi-terrain casters
- Removable racks at 4.5" spacing
- Heavy Duty package option available
Dimensions
Standard (JZA, JZHH, JZHA):
Height: 66.00" / Width: 62.5" / Depth: 31.75"
Refrigerated (JZRR & JZHR):
Height: 76" / Width: 62.5" / Depth: 31.5"
Electrical
JZAA-144: No electrical system
JZHH-144-2RH: 120V / 2400W / 20AMP / NEMA 5-20P
JZHH-144: 120V / 1920W / 16AMP / NEMA 5-20P
JZRR-144: 120V / 1596W / 13.3AMP / NEMA 5-20P
JZHA-144-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P
JZHA-144: 120V / 960W / 8AMP / NEMA 5-15P
JZHR-144-RH: 120V / 1800W / 15.0AMP / NEMA 5-20P
JZHR-144: 120V / 1680W / 14AMP / NEMA 5-20P
Capacity
9000 Series: 144 (shelves), 264 (no shelves)
5000 Series: 192 (shelves), 360 (no shelves)
4000 Series: 192 (shelves), 378 (no shelves)
Capacities based on ambient configuration. Other configurations may differ — check spec sheets for details.
Spec Sheets

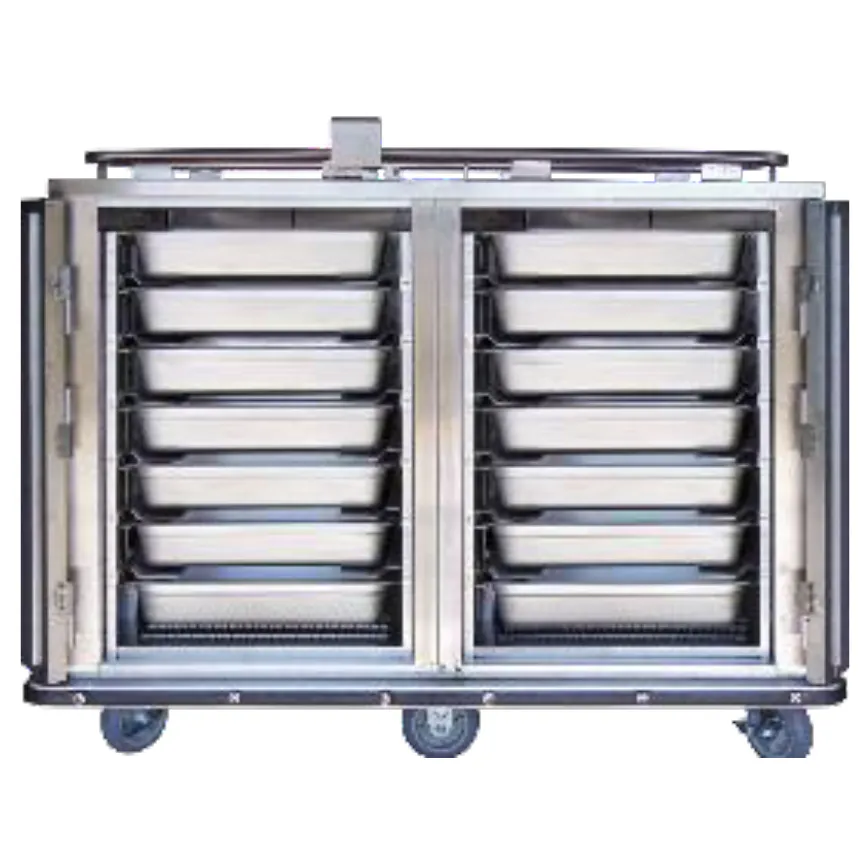

Features
- Available configurations: Ambient, Heated, Refrigerated, Heated/Ambient & Heated/Refrigerated
- 6" multi-terrain casters
- Side-mount recessed push handles
- Available as All-Heated or Dual-Temp
Dimensions
Standard (JZA & JZHA):
Height: 47.5" / Width: 62.9" / Depth: 31"
Refrigerated (JZR & JZHR):
Height: 62" / Width: 62.9" / Depth: 32"
Electrical
JZA-168: No electrical system
JZH-168-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P
JZR-168: 120V / 817W / 6.8AMP / NEMA 5-15P
JZHA-168: 120V / 1700W / 14.2AMP / NEMA 5-15P
JZHR-168: 120V / 1800W / 15AMP / NEMA 5-20P
Capacity
9000 Series: 168
5000 Series: 266
4000 Series: 336
SmartTray: 162
SmartTray XDs: 130
Capacities based on ambient configuration. Other configurations may differ — check spec sheets for details.
Spec Sheets

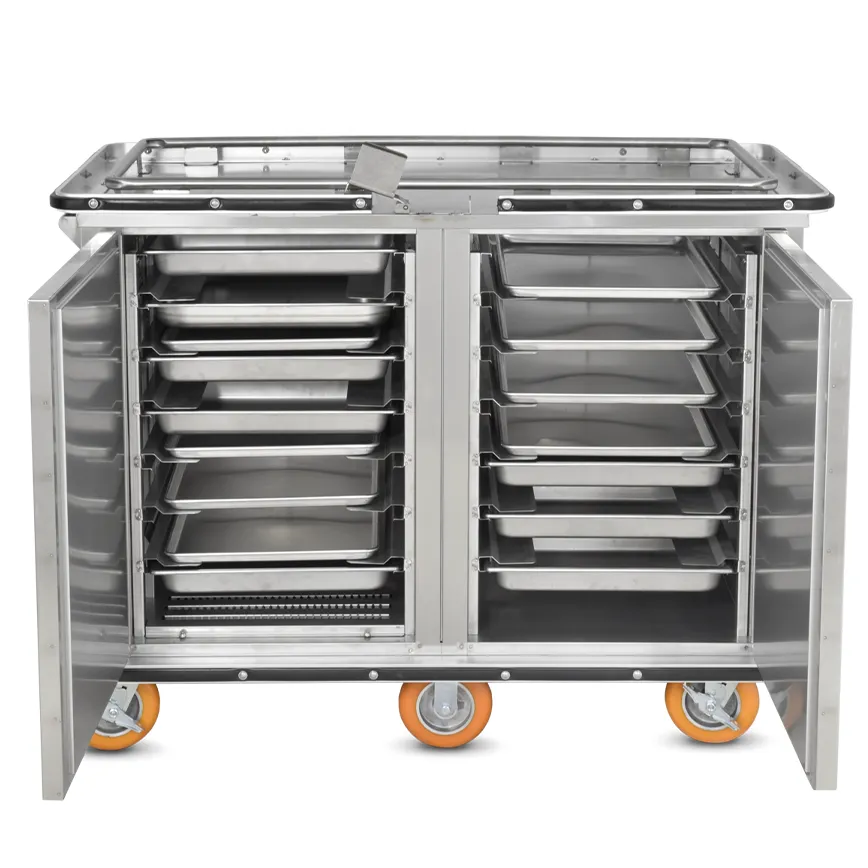

Features
- Available configurations: Ambient, Heated, Refrigerated, Heated/Ambient & Heated/Refrigerated
- Bolt reinforced bottom bumper
- Can carry up to 14 sheet pans (18x26)
- Solar digital thermometer
Dimensions
Standard (JZA, JZH, JZHA):
Height: 47.50" / Width: 62.9" / Depth: 32.5"
Refrigerated (JZHR):
Height: 62.25" / Width: 62.9" / Depth: 32.5"
Electrical
JZA-168XL: No electrical system
JZH-168XL-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P
JZR-168XL: 120V / 817W / 6.8AMP / NEMA 5-15P
JZHA-168XL-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P
JZHR-168XL-RH: 120V / 1800W / 15.0AMP / NEMA 5-20P
Capacity
9000 Series: 168
5000 Series: 294
4000 Series: 368
SmartTray: 170
SmartTray XDs: 130
Capacities based on ambient configuration. Other configurations may differ — check spec sheets for details.
Spec Sheets
Features
- Available configurations: Ambient, Heated, Refrigerated, Heated/Ambient & Heated/Refrigerated
- Can carry 32 bulk food pans (4")
- Top rail for transport
- Excellent maneuverability
Dimensions
Standard (JZA, JZH, JZHA):
Height: 51" / Width: 62.9" / Depth: 32.5"
Refrigerated (JZHR):
Height: 66.25" / Width: 62.9" / Depth: 32.5"
Electrical
JZA-192XL: No electrical system
JZH-192XL-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P
JZR-192XL: 120V / 817W / 6.8AMP / NEMA 5-15P
JZHA-192XL-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P
JZHR-192XL-RH: 120V / 1800W / 15.0AMP / NEMA 5-20P
Capacity
9000 Series: 192
5000 Series: 336
4000 Series: 414
SmartTray: 190
SmartTray XDs: 150
18" x 26" Sheet Pans: 16
12" x 20" x 4" Hotel Pans: 32
Capacities based on ambient configuration. Other configurations may differ — check spec sheets for details.
Spec Sheets
Features
- Available configurations: Ambient, Heated & Heated/Ambient
- S/S mid-shelf for stability
- Bottom baffle heat distribution
- Side-mounted removable heating assembly
Dimensions
Standard:
Height: 64.5" / Width: 46" / Depth: 31.75"
Electrical
JZA-198: No electrical system
JZH-198-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P
JZHA-198-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P
Capacity
9000 Series: 198
5000 Series: 260
4000 Series: 360
SmartTray: 168
SmartTray XDs: 108
Capacities based on ambient configuration. Other configurations may differ — check spec sheets for details.
Spec Sheets
Features
- Available configurations: Ambient, Heated & Heated/Ambient
- 8" premium casters
- Reinforced bumpers, hinges, and latch
- Recessed security handle
Dimensions
Standard:
Height: 66.5" / Width: 46" / Depth: 32.75"
Electrical
JZA-198HD: No electrical system
JZH-198HD-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P
JZHA-198HD-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P
Capacity
9000 Series: 198
5000 Series: 260
4000 Series: 360
SmartTray: 168
SmartTray XDs: 108
Capacities based on ambient configuration. Other configurations may differ — check spec sheets for details.
Spec Sheets
Features
- Available configurations: Ambient, Heated & Refrigerated
- 6" premium casters
- Solar-powered digital thermometer
- Fully insulated top, bottom, and sides
Dimensions
Standard (JZA & JZH):
Height: 53.75" / Width: 62.9" / Depth: 32.5"
Refrigerated (JZR):
Height: 68.25" / Width: 62.9" / Depth: 33.5"
Electrical
JZA-204XL: No electrical system
JZH-204XL-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P
JZR-204XL: 120V / 817W / 6.8AMP / NEMA 5-15P
Capacity
9000 Series: 204
5000 Series: 352
4000 Series: 432
SmartTray: 200
SmartTray XDs: 150
18" x 26" Sheet Pans: 18
12" x 20" x 4" Hotel Pans: 32
Capacities based on ambient configuration. Other configurations may differ — check spec sheets for details.
Spec Sheets

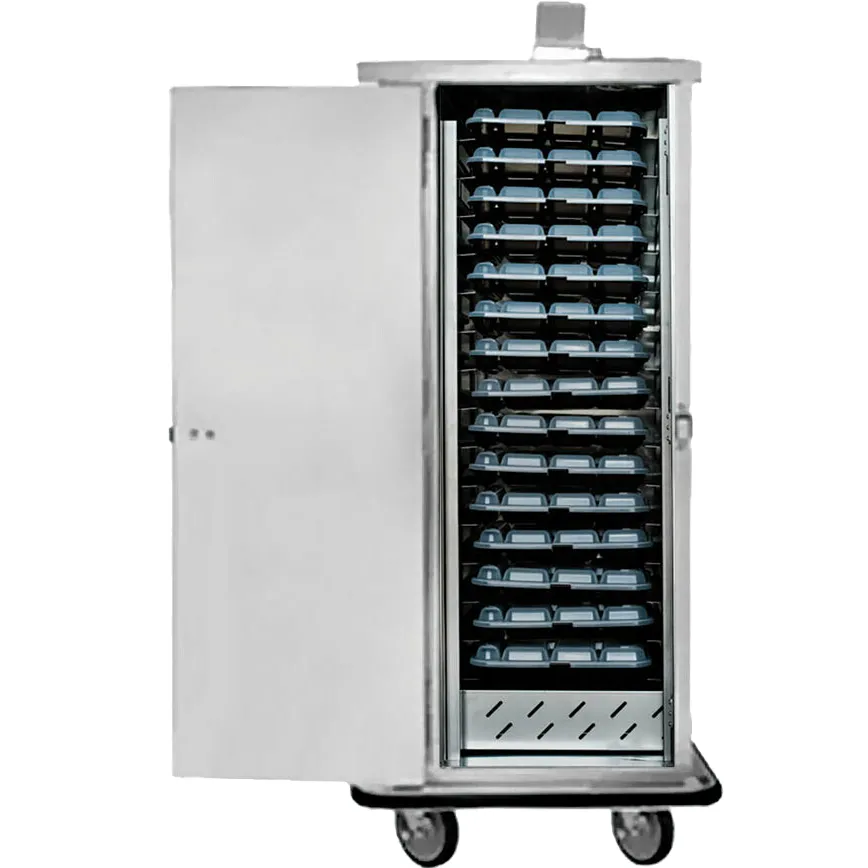

Features
- Available configurations: Heated
- Bottom-mounted heating system
- Fully insulated top, bottom, and sides
- Four 6" swivel casters
Dimensions
Height: 61.4" / Width: 27.75" / Depth: 29"
Electrical
JZPPST-28-30: 120V / 1300W / 15AMP / NEMA 5-15P
Capacity
10" x 14" Trays: 30
Spec Sheets

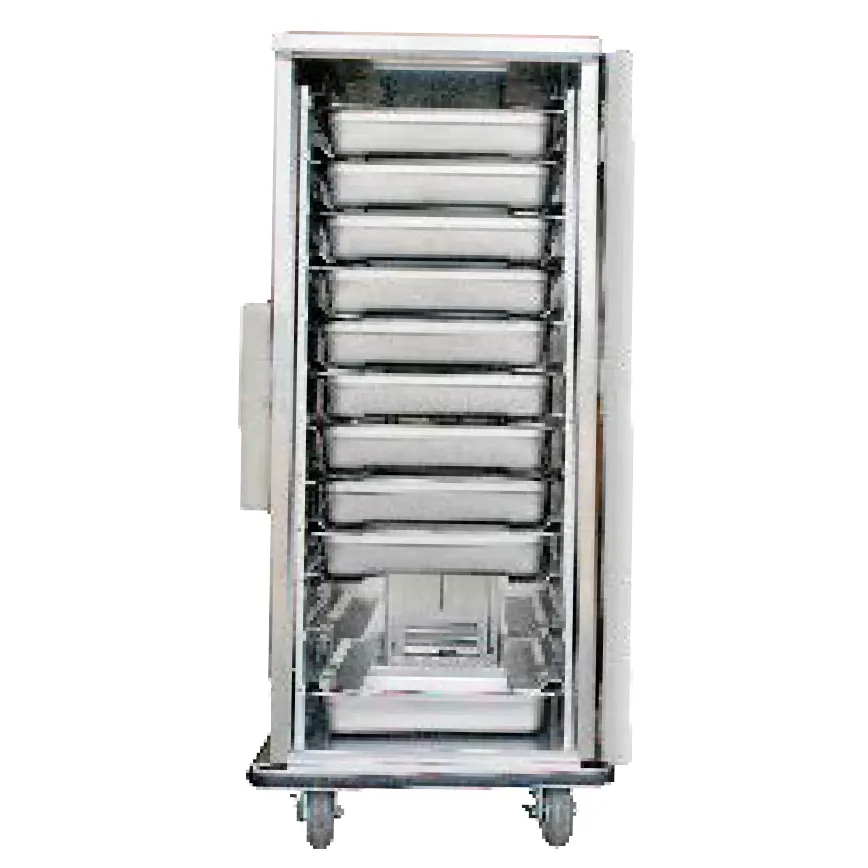

Bulk Food Carts
Bulk food transport and holding carts for correctional kitchens. Available in heated, ambient, and refrigerated configurations sized to carry sheet pans, hotel pans, and high-volume meal trays.
Features
- 30.75" width fits most doorways
- Rear-mounted removable heating assembly (optional)
Dimensions
JZH-4UBT-BULK:
Height: 50.5" / Width: 62.9" / Depth: 32.5"
Electrical
JZH-4UBT: 120V / 1800W / 15AMP / NEMA 5-20P
Capacity
18" x 26" Sheet Pans: 4 (hot) / 4 (cold)
12" x 20" x 4" Hotel Pans: 8 (hot) / 8 (cold)
Spec Sheets

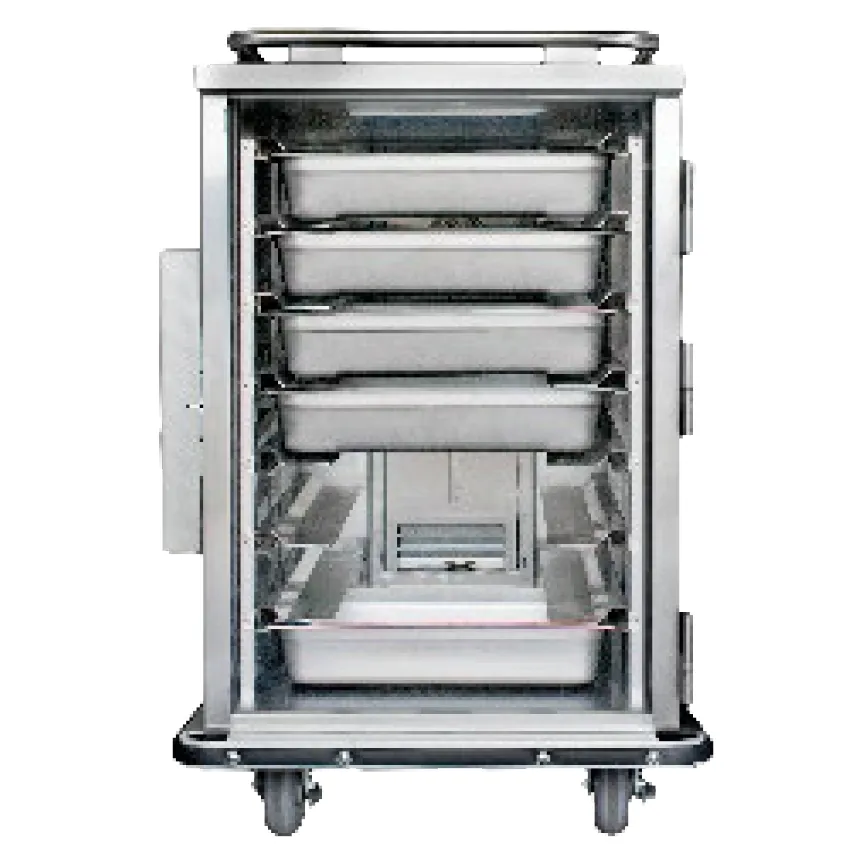

Features
- 30.75" width fits most doorways
- Rear-mounted removable heating assembly (optional)
Dimensions
JZH-6UBT-RH-BULK:
Height: 47.3" / Width: 30.75" / Depth: 38.25"
JZR-6UBT:
Height: 62.20" / Width: 34.5" / Depth: 36.5"
Electrical
JZH-6UBT-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P
JZR-6UBT: 120V / 780W / 6.5AMP / NEMA 5-15P
Capacity
18" x 26" Sheet Pans: 7
12" x 20" x 4" Hotel Pans: 14
Spec Sheets

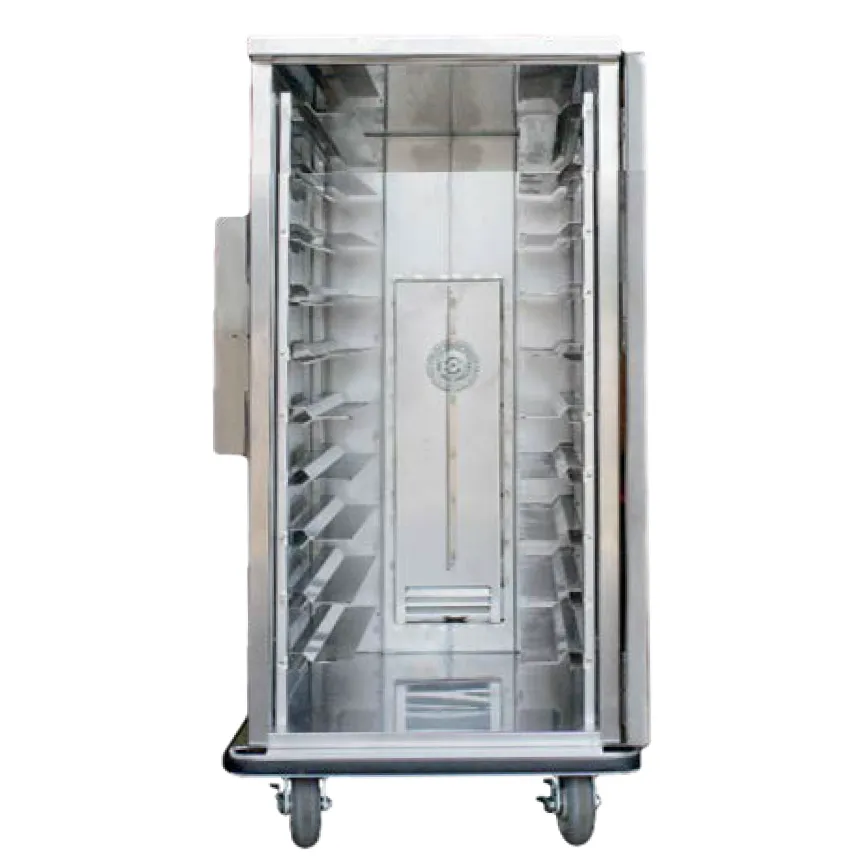

Features
- 30.5" width fits most doorways
- Solar-powered thermometer
- Fully insulated top, bottom and sides
Dimensions
JZH-10UBT-RH:
Height: 59" / Width: 30.5" / Depth: 38"
JZR-10UBT:
Height: 75.5" / Width: 34.5" / Depth: 36.5"
Electrical
JZH-10UBT-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P
JZR-10UBT: 120V / 780W / 6.5AMP / NEMA 5-15P
Capacity
9000 Series: 120
5000 Series: 200
4000 Series: 210
18" x 26" Sheet Pans: 10
12" x 20" x 4" Hotel Pans: 20
Spec Sheets
Features
- 30.5" width fits most doorways
- Solar-powered thermometer
- Fully insulated top, bottom and sides
Dimensions
Standard (JZA, JZH-12UBT-RH):
Height: 67.5" / Width: 30.5" / Depth: 38"
JZH-12UBT:
Height: 72" / Width: 28.75" / Depth: 35.75"
Electrical
JZA-12UBT: No electrical system
JZH-12UBT-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P
JZH-12UBT: 120V / 1700W / 14.2AMP / NEMA 5-15P
Capacity
18" x 26" Sheet Pans: 12
12" x 20" x 4" Hotel Pans: 24
Spec Sheets
Features
- Top-mounted refrigeration on right side
- Side-mounted snap-in heater on left side
- Solar digital thermometer with security cover
Dimensions
Height: 76" / Width: 62.25" / Depth: 31.75"
Electrical
JZHR-144-BULK: 120V / 1800W / 15AMP / NEMA 5-20P
Capacity
18" x 26" Sheet Pans: 20
12" x 20" x 4" Hotel Pans: 40
Spec Sheets
Features
- Bolt reinforced bottom bumper
- Can carry up to 14 sheet pans (18x26)
- Solar digital thermometer
Dimensions
Height: 62.25" / Width: 62.9" / Depth: 31"
Electrical
JZHR-168-RH-BULK: 120V / 1800W / 15AMP / NEMA 5-20P
Capacity
12" x 20" x 4" Hotel Pans: 14 (hot) / 14 (cold)
Spec Sheets
Features
- Bolt reinforced bottom bumper
- Can carry up to 14 sheet pans (18x26)
- Solar digital thermometer
Dimensions
Height: 62.25" / Width: 62.9" / Depth: 32.5"
Electrical
JZHR-168-RH-BULK: 120V / 1800W / 15AMP / NEMA 5-20P
Capacity
18" x 26" Sheet Pans: 7 (hot) / 7 (cold)
12" x 20" x 4" Hotel Pans: 14 (hot) / 7 (cold)
Spec Sheets
ServeSmart Meal Delivery System
High-capacity tray delivery carts designed to improve maneuverability, tray organization, and correctional meal service efficiency.
Explore ServeSmartMission Ready Food Carts
Correctional-grade carts with removable heating systems engineered to simplify maintenance and reduce downtime.
Explore Mission ReadyRequest a Quote on Correctional Food Service Equipment
Tell us your facility size, tray program, and housing unit configuration and we'll recommend the right cart and get you pricing. We can also help you compare configurations — heated vs. ambient, single-temp vs. dual-temp — based on your operation.
